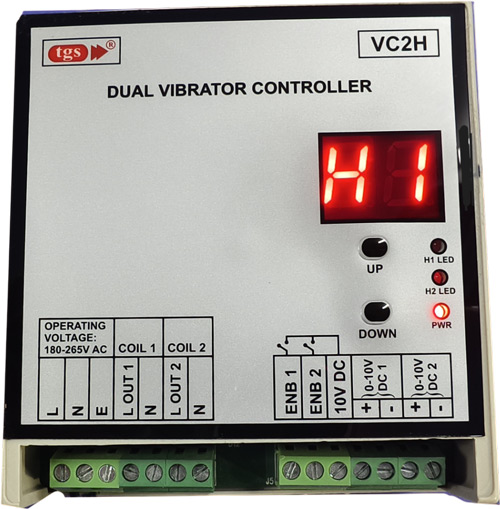

Dual Head Vibrator Coil Controllers Model- VC-2H
Our Dual Vibrator Coil Controller Model VC-2H is specially designed to control two vibrator
coils simultaneously, offering independent control and fine-tuning capabilities for individual
coils. Light Weight and compact size reducing Mounting space in Panel.
Ideally best for 2 Head, 4 Head etc.
Features:
- Microcontroller-Based Design: Ensures easy and precise control of coil vibration intensity.
- Independent Coil Control: Each coil can be controlled separately, with independent vibration settings.
- Soft Start Functionality: Reduces mechanical stress by gradually increasing voltage during startup.
- Enable / Disable Facility: Provides the ability to activate or deactivate each coil as needed.
- Voltage Output: Adjustable from 0 to 180 VAC, suitable for various industrial vibrator coils.
- Display Interface: 2-digit display indicates the percentage of vibration for both coils.
- Operating Modes: Supports both automatic and manual operation modes for flexibility.
- Built-in Protection: Includes individual fuses for each output to safeguard against overcurrent.
- Power Supply: Operates on standard 230 VAC supply.
- Compact Design: DIN rail mounting with dimensions of 100 × 107 × 35 mm.
- Light Weight: Approximately 250 grams only.
- Proven Expertise: Over two decades of experience in delivering cutting-edge automation solutions.
