Gadiya Electronics, Pioneers in Manufacturing of Microcontroller based products for Industrial Automation. We Have Encoder controllers in our range. It finds use in Cut To Length Applications, Accurate Degree Controls etc.

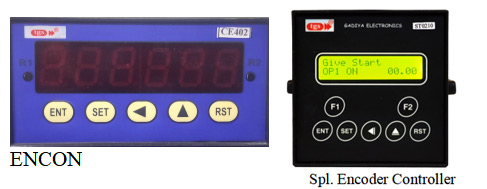

Model - ENCON : The controller is 32 bit Microcontroller based. It is available in compact size of 48 x 96 x 110 mm Panel Mounting Housing. It accepts input from Rotary encoder / Linear Transducer / Linear Scale and displays directly in mm, inch, degree etc. as required.

Features:

6 digit, bright 7 segment display
High measuring frequency > 100 KHz
Selectable Degree or Length mode
Facility for X2, X4
Two potential free outputs
Auto Reset / External reset
Settable ON time for each output (0.01 sec to 100 sec) in sequential mode
Memory back up of over 10 years
5 key keypad for easy parameter setting
Settable Scale Factor / Decimal Point to display directly in mm, inch, deg etc.
Different mode of Output control
Industrial Design - Immune to electrical noise
Supply: 85-265VAC

Optional Features:

Encoder with 4 channel ( A, Abar, B, Bbar) 5VDC can also be interfaced.
MODBUS protocol for communication with PC/PLC

LCD Based controllers with higher I/Os can be provided. Special Purpose controllers as per requirement can also be provided.
