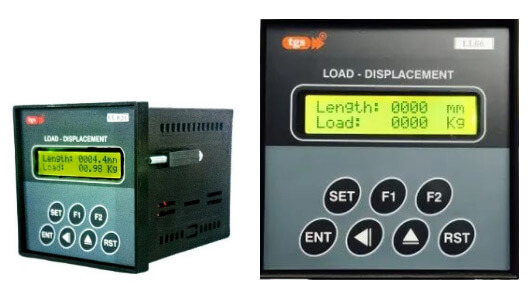

TGS Load / Displacement Controllers for Industrial Automation in Maharashtra
TGS Load / displacement controllers ( model LLFM02.1) are Specially designed to Compare Load Values with respect to Distance generally in a Hydraulic press… Simultaneously. Its High Speed response makes is ideal for applications where High Speed Comparison of two pressing parts like Pin Press, Bush, Valve Guide, Valve seat, Bearing…. for that matter any two press joining parts are involved.
This helps in deciding the Press quality of the pressed parts.
Controller can be fitted as an ADDON system, so it does not disturb the regular functioning of Machine working.
Key Features:
- Dual Input Monitoring: Simultaneously monitors load (via strain gauge load cells) and length (via linear potentiometers or encoders) for quality maintenance of pressing process control.
- Multiple Points: Accurate Load Data at multiple length points can be captured.
- Minimum Hardware: Accepts input directly from load cells and analog linear transducers, additional interface hardware is NOT required.
- High-Speed Microcontroller: 32-bit microcontroller ensures rapid and accurate data processing.
- User-Friendly Display: Equipped with a 16x2 backlit LCD for clear visualization.
- Outputs: Standard 2 outputs available for OK and N.OK.
- Compact Design: Panel mounting housing with dimensions of 96 x 96 x 110 mm, suitable for space-constrained installations.
- Versatile Output Options: Standard two potential-free outputs, with higher outputs available upon request.
- Onsite Calibration: Facilitates easy calibration of load and length parameters directly on-site.
- Memory Backup: Retains settings and data for over 10 years, ensuring reliability.
- Password Protection: Secures system parameters with double password protection for calibration processes.
- Communication: Model with RS485 communication facility (LLFM02.1) for uploading and downloading parameters from external devices like PLC etc.
- Supply: Standard 24VDC (90-265VAC on request).
