Manufacturer of Load Cell Controllers & Weighing Controller by Gadiya Electronics, Pune

Proven Expertise: Over two decades of experience in industrial automation.
Quality Assurance: Products manufactured with high-grade materials and advanced technology.
Customer-Centric Approach: Tailored solutions to meet specific industrial requirements.
Comprehensive Support: Dedicated pre- and post-sales support for seamless integration.

Industrial Automation

Contact With Us

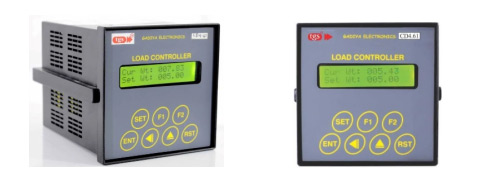

Load Cell Controllers for Industrial Automation in Maharashtra

Load cell Controllers are designed employing latest Microcontroller devices. Reliability and High Performance are what makes these controllers most sought after. In house design capabilities enable us to provide Application specific controllers also. And can be used for diverse Applications.

Features :

Advanced Microcontroller: 32-bit high-speed microcontroller-based design for efficient processing.
User-Friendly Interface: Equipped with a 16x2 line backlit LCD, 7 key keypad providing for easy setting and user-friendly messages.
High Speed: Best suited in applications requiring instant responses like in Break / Fatigue Load detection.
High Accuracy and Repeatability: Ensures consistent performance with high precision.
Fast Response: High speed updating and response of Load values.
Compact Design: Dimensions of 96 x 96 x 110 mm, suitable for panel mounting.
Versatile Input Compatibility: Accepts inputs from all types of strain gauge load cells, measuring in Tons, Kgs, Grams, or Newtons.
Calibration: Easy calibration, can be performed on-site.
Flexible Outputs: Standard two potential-free outputs with different modes of Output settings. Higher outputs can be made available upon request.
Long-Term Memory Backup: Solid-state memory for lifelong retention.
Additional Features: Peak hold display, tare facility, settable decimal point, and maximum load capacity settings.
Optional Analog Output: 0-10VDC or 4-20mA outputs available.
Communication: Optional RS485 / RS232 communication facility for integration with PLC / other systems.
Power Supply: Wide operating voltage of 85-265VAC / 24VDC.
